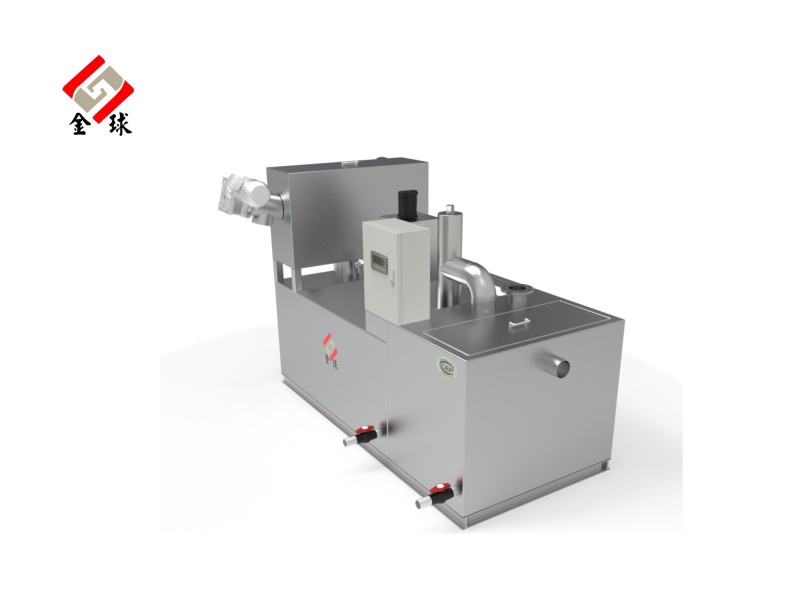

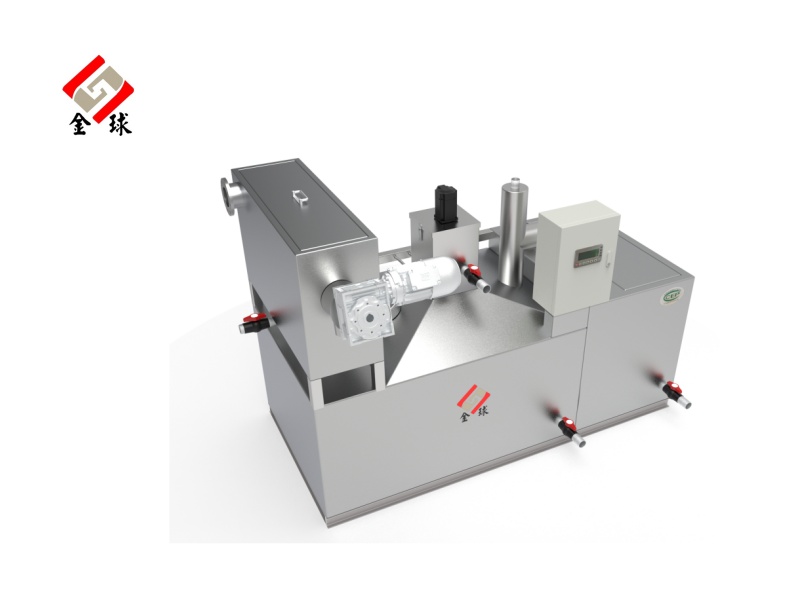

GBOS-Q5 oil barrier lifting equipment

Model: GBOS-Q5;

Treatment: 10-60 tons/hour; medium temperature: ≤40 ℃; pH value: 5~ 9;

Material: stainless steel 304, 201, 316L;

Optional: automatic slag removal, air flotation, sewage lifting, electric heating, filtration device, PLC;

Scope: various restaurants, canteens, hot pot restaurants, restaurants, commercial complexes, hotels, shopping malls, hospitals, schools, office buildings, large supermarkets, university towns, airports, food streets, railway stations, stations and enterprise canteens and other places;

Application scenarios

This product is mainly used for wastewater treatment in the catering industry to separate the oil and fat in the sewage.
To meet the requirements of the oil content index in the sewage discharge standard, it is widely used in unit canteens,
Wastewater treatment in hotels, catering enterprises and commercial complexes.

Product Overview

This series of products is developed and produced according to the demand for oil-water separation of catering wastewater in the market
Product. The process objective is: after the oily sewage discharged by the catering unit is treated by the process, it will reach
To the sewage discharge standard level 3 or above (only refers to the oil content index ≤100mg/L)
Suspended Solid Index (SS).
The scope of work of this product:
1. Ambient temperature 4 ℃ -40 ℃, relative humidity ≤70% (20 ℃)
2. Raw water pH: 6-9
3. Head range 0-60m, flow range 0-100m³/h
4. Power supply voltage 380V, frequency 50HZ
5. Density of raw water and oil ≤0.95g/cm³, oil content ≤350mg/L
6. Raw water suspended solids concentration (SS) ≤290mg/L
The product passes through solid-liquid separation, oil-water separation, oil collection, lifting discharge and other processes
Realize the three-phase separation of wastewater, grease, and solid residue in wastewater, and directly discharge wastewater
Pipe network, centralized treatment after grease collection (refining biodiesel). Concentrated transfer of solid slag to garbage
Processing center. The product is automatically operated unattended, with low noise and low consumption, odorless and no leakage, and can be
Yancheng Jinqiu Environmental Protection Industry Development Co., Ltd.
Connecting to the central control system to monitor the running status meets the modern management requirements of related enterprises.

IV.Working principle

Catering wastewater enters the equipment area, first passes through the solid-liquid separation area, and passes through fully automatic slag removal
The treatment of the machine separates the solid slag above 5mm in the raw water and discharges it to the storage bucket, and the pollution below 5mm
The mud is deposited to the bottom of the tank and discharged, and the treated sewage enters the oil-water separation zone. This area is established by
The diversion spoiler device can change the water flow route and increase the residence time of sewage in the area
(3-4 minutes) Keep the water flow at a speed below 0.01m/s and flow to the water outlet at a constant speed
During the dynamic process, the density difference between oil and water is used to make the oil automatically float to the liquid surface and guide along the cone
The plates are brought together to the oil collector, and a constant temperature heating device is provided in the oil collector to facilitate the grease to remain in the liquid
Discharge in state. The grease in the oil collector is regularly discharged into the storage barrel during the oil-water separation process
In the middle, a small amount of sludge is collected into the sludge discharge area under the action of gravity and water flow
Near). The siphon device at the lower end of the drain pipe will lift more than 90% of the deposited sludge to the drain
Area, a small amount of remaining sludge is regularly discharged through the valve, and the treated wastewater meets the standards is in the sewage pump
Under the action of, it is discharged into the municipal sewage pipe network. All process points are at the work set by the control system
Work under the program, multi-point correlation action, maximize the efficiency of oil and water slag separation.
2/
7Yancheng Jinqiu Environmental Protection Industry Development Co., Ltd.

V. Product features

1. The product box is all stainless steel plate (SUS304), fully enclosed structure, reserved for ventilation
Make sure there is no odor or leakage between the equipment.

2. After the sewage enters the water inlet tank, the fully automatic slag removal machine separates more than 5mm of solid slag to
Outside the equipment, automatic washing of the mesh (anti-blocking) during operation ensures the process efficiency of solid-liquid separation
Fruit.

3. The swirl device at the outlet of the water inlet tank avoids the accumulation of grease in the water inlet tank.

4. After accurate model calculation, the diversion and spoiler device is established to delay the flow rate and prolong it
The residence time of wastewater ensures the gravity separation of oil and water.

5. The accurate taper design at the top allows the floating grease to quickly gather along the cone plate
In the oil area, the phenomenon of grease being carried into the drain by the water flow is avoided to the greatest extent.

6. The constant temperature heating device of the oil collector keeps the oil in a liquid state
It is conducive to the smooth discharge of grease and effectively controls the moisture content of grease.

7. The siphon device at the end of the drain pipe in the oil-water separation area maximizes the sinking of the area
The sludge is discharged to the drainage area to avoid the blockage of the box.

8. The oil discharge area adopts double pump setting, one use and one preparation, rotating work, instantaneous excess flow double
The pump starts at the same time to ensure that there is no spill during operation. The submersible sewage pump adopts coupling installation, maintenance and replacement
Convenient and fast.

9. Set up an overflow device for the drainage tank to ensure operation in the event of maintenance, power outage, etc
The normal operation of the unit.

10. The connection pipeline of the functional area adopts DN150 large pipeline, which effectively guarantees the stay of the separation zone
Time has avoided the phenomenon of pipeline blockage.
